Impact-Resistant Mortar Floors for Loading Docks, Foundries, and Heavy F&B

When thin-film runs out of road

Have you ever watched a brand-new factory floor peel up after just a few months? That is exactly what happens when standard thin-film coatings face serious abuse, which is why true Heavy-Duty Mortar Flooring is essential for Malaysian facilities. We see it all the time here in Johor Bahru.

Hot-wheel traffic, aggressive washdown cycles, and forklift point loads over 3 tonnes will tear right through a standard 1-4mm surface in months. Our team installs three distinct mortar chemistries to solve these exact problems. These thicker 6-12mm systems are engineered specifically to take that punishment.

Grab a cup of coffee, and let us walk you through how to choose the right one for your operation.

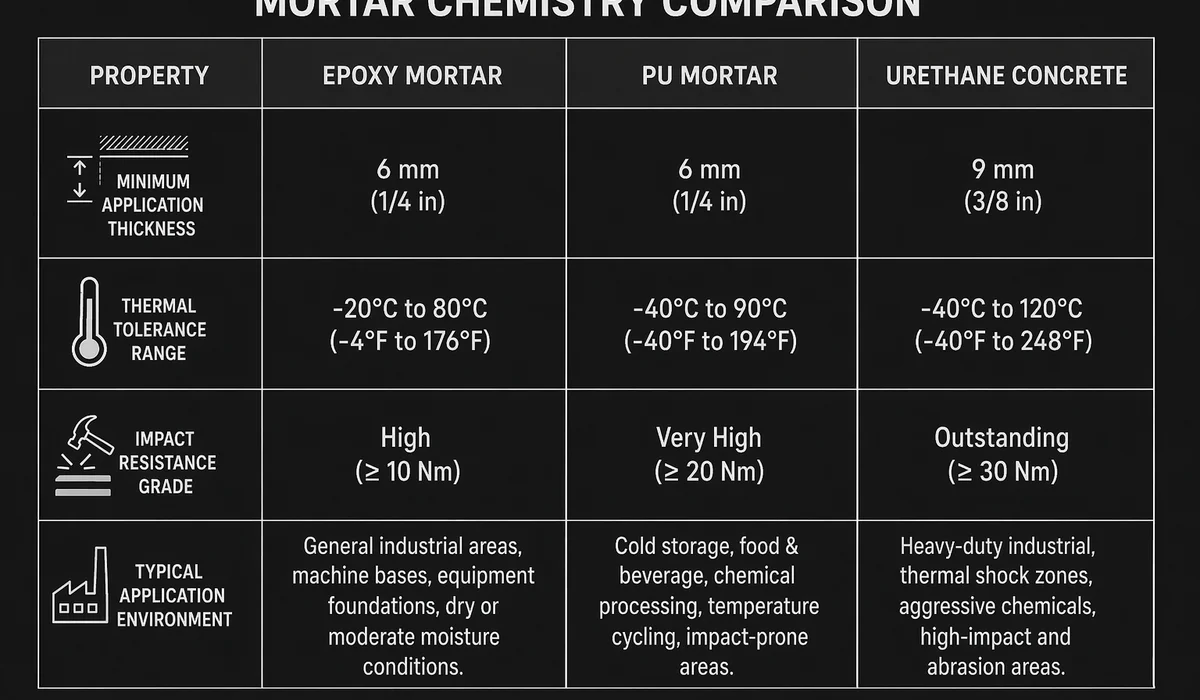

The three Heavy-Duty Mortar Flooring chemistries

Epoxy Mortar (6-9mm)

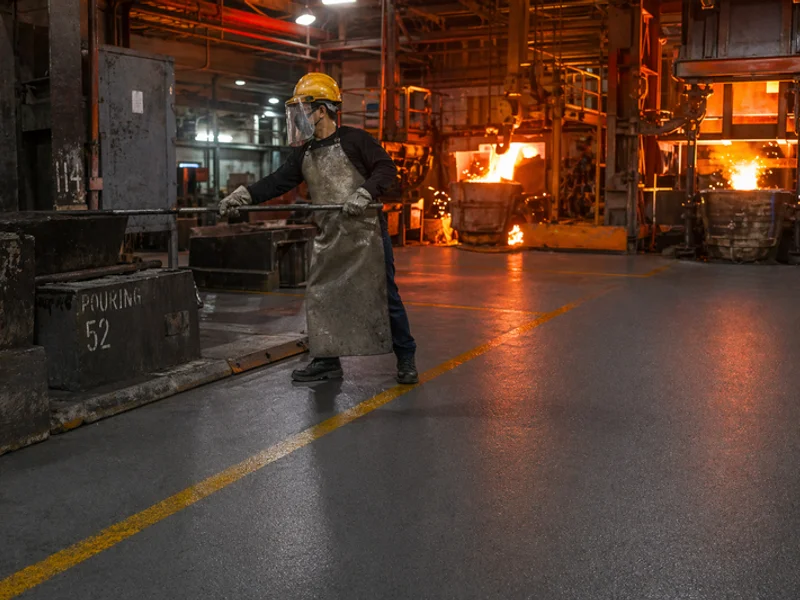

This formulation provides maximum abrasion and impact resistance in completely dry environments. We use quartz sand fillers with grain sizes between 0.1mm and 2.0mm to build this strong layer. The mechanical interlock creates a compressive strength reaching 120 MPa, which easily handles those massive 3-tonne forklift point loads. It is the ideal setup for foundries, heavy workshops, and dry pallet-handling zones across Malaysia. You should avoid specifying this chemistry if steam cleaning or freezer transitions are planned, because epoxy does not tolerate thermal cycling.

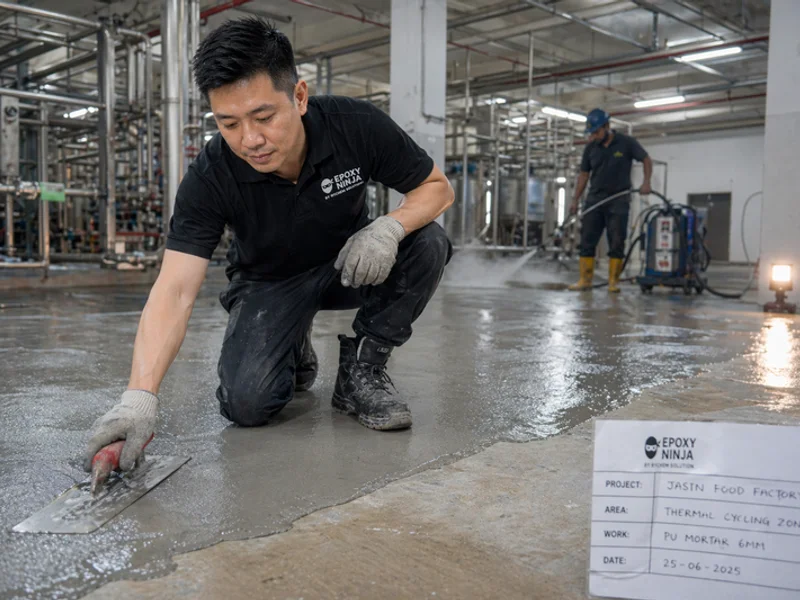

PU Mortar (6-9mm, Ucrete-grade)

Wet and hot environments demand a totally different solution. Our preferred specification for heavy food and beverage processing is this 6-9mm PU mortar. The surface survives hot-wheel traffic, constant washdowns, and heavy chemical exposure from daily cleaning acids. You will get thermal shock resistance up to 80°C, which easily handles most factory hot water discharges. The Sika Ucrete system is a prime example of this chemistry, and it cures fast enough to return your floor to service in just five hours.

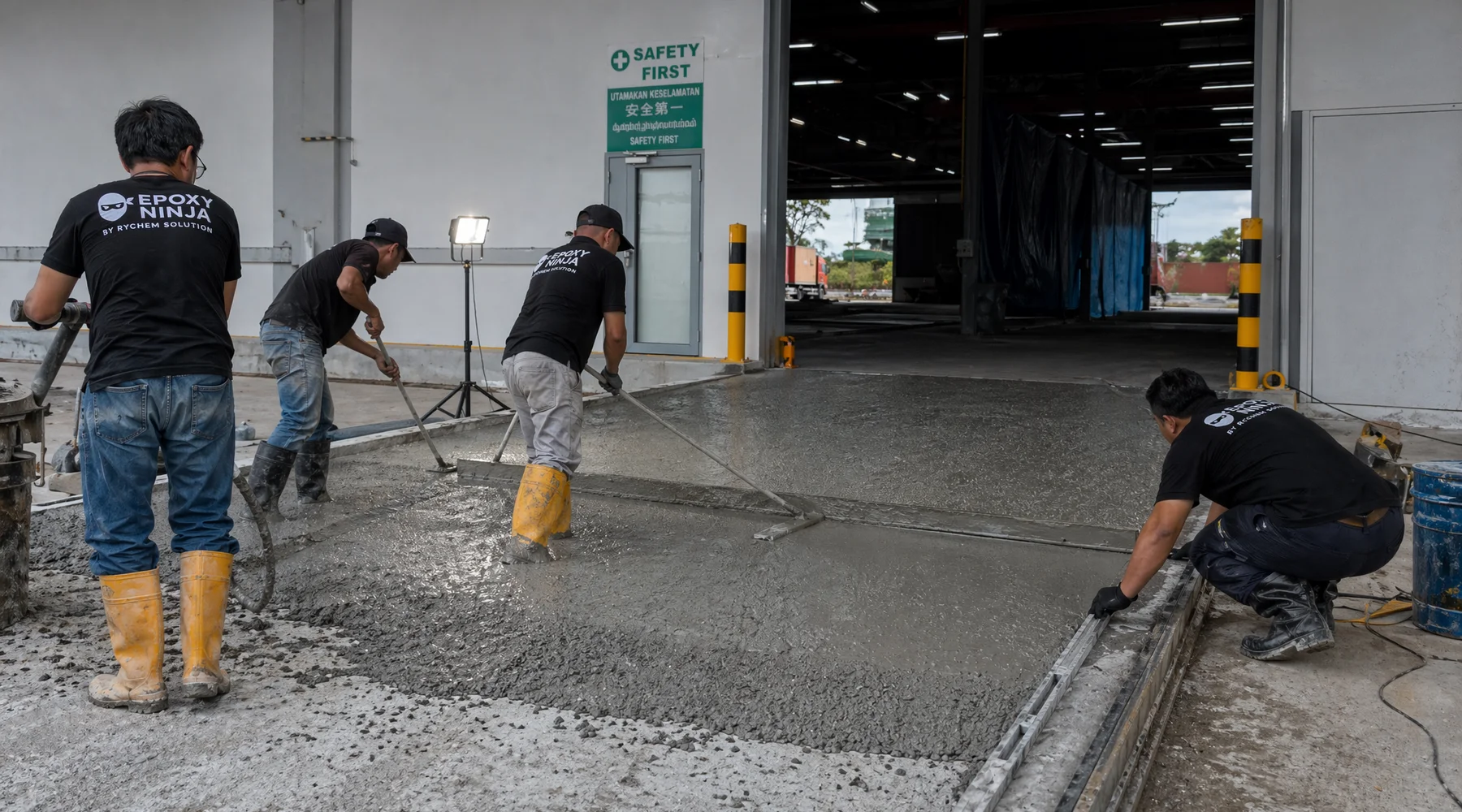

Urethane Concrete MF (9-12mm)

Facilities with heavier thermal cycling need a thicker barrier. We step up to a 9-12mm Urethane Concrete MF system for blast-chiller transitions and high-temperature food processing. The thicker resin matrix can handle occasional spillages up to 150°C without softening or delaminating. Local systems like GrecoFloor PU-MF offer a smooth matte finish that completely blocks out moisture and bacteria. Bakery ovens sitting right next to coolers are the perfect candidate for this heavy-duty grade.

Urethane Concrete HF (9-12mm)

The heaviest thermal and chemical exposure requires the absolute toughest floor available. Our top recommendation for freezer rooms, dairy aseptic zones, and meat processing facilities is the HF system. It easily resists the severe fats, blood, and highly corrosive acids found in poultry and dairy plants. The 9-12mm thickness provides incredible stability because it features thermal expansion properties very similar to the concrete underneath. This means the floor will not pop off during rapid blast-freezing cycles or severe hot-water washdowns.

Detailing is the part that fails first

Have you noticed that floors rarely fail in the wide-open middle areas? Dock-edges, transition ramps, and control joints are where heavy-duty mortar installations typically show their first signs of trouble. Cheap contractors often chamfer-cut a shallow edge, trowel the mortar level, and walk away. Six months of forklift traffic quickly chips that weak edge.

Moisture migration then begins creeping under the mortar. This is a massive threat in Malaysia due to our persistent 80 percent plus relative humidity. The trapped water vapor pulls concrete salts to the surface, creating osmotic blisters that literally push the non-permeable coating off the slab.

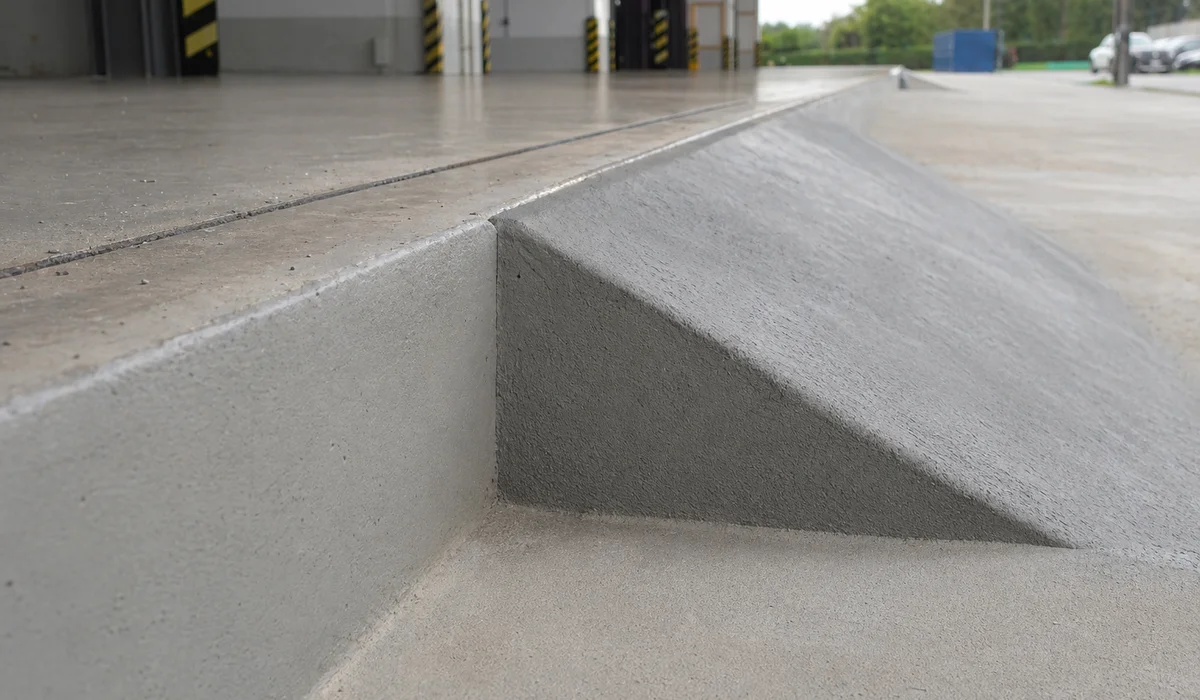

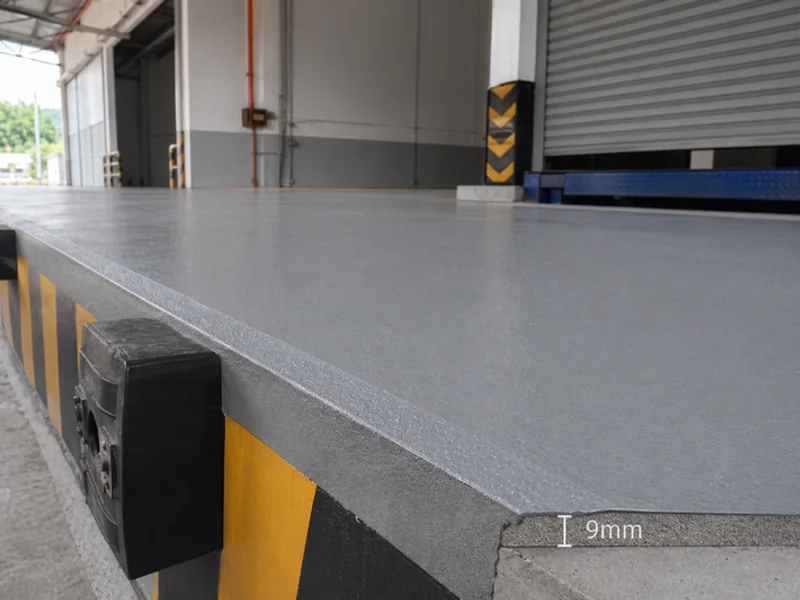

We install dock-edges with a deep 45-degree chamfer cut back 100mm into the concrete. The mortar is then precisely placed to fill and radius the edge for maximum impact resistance. Our crews also detail all control joints with a flexible polyurea sealant that accommodates the natural expansion and contraction of the slab. Proper detailing definitely costs more upfront, but it is the exact reason your floor actually lasts for decades.

Cost range

Budgeting for a new industrial floor requires looking at both the material thickness and the current substrate condition. We always evaluate the specific demands of your Malaysian facility before locking in a final quote.

A fully cured slab with a low moisture vapor emission rate, testing below 75 percent internal relative humidity, costs significantly less to prep. Preparing a 30-year-old concrete slab covered in three layers of failed legacy coating will naturally drive the price up. Here is a breakdown of the standard price ranges:

Flooring System	Thickness	Estimated Cost
Epoxy mortar	6-9mm	RM 70-130/sqft
PU mortar / Ucrete-style	6-9mm	RM 90-180/sqft
Urethane concrete MF	9-12mm	RM 120-200/sqft
Urethane concrete HF	9-12mm	RM 150-220/sqft

Are you ready to stop patching your floors every six months?

We can help you pick the exact Heavy-Duty Mortar Flooring formulation your facility needs. A proper installation will save you thousands of ringgit in future downtime.

Give our team a call today, and let us get your factory floor built to survive the long haul.
