Factory Line Marking and 5S Color Coding for Malaysian Industrial Facilities

Have you ever noticed how people automatically follow the lines on a factory floor?

Adding professional Custom Floor Markings & Line Marking changes everything about how a space functions. Our team at Epoxy Ninja Johor Bahru is committed to setting the standard for quality and reliability in the industrial and commercial flooring industry. Customers, auditors, and busy forklift operators all read your floor before they read a single sign.

Clear walkway lines, hazard zones, and 5S color coding tell your facility’s operational story in the very first minute someone walks in. We install durable industrial line marking systems engineered to survive heavy traffic, frequent washdowns, and relentless forklift wear. Layouts are always designed directly against your actual operational flow to prevent accidents.

Grab a cup of coffee, and let’s go through these options together. Our guide will show you exactly what you need to know for a compliant facility.

Custom Floor Markings & Line Marking is the layer people see

Visual communication is your very first line of defense against workplace accidents. A recent 2024 report from the Department of Statistics Malaysia highlighted over 38,950 occupational injuries nationwide. Our goal is to help you keep your workers out of those statistics by making hazards impossible to ignore.

Forklift operators and new staff rely heavily on clear floor cues to navigate safely. The Department of Occupational Safety and Health (DOSH) takes these visual controls very seriously during site inspections. We have seen how a faded walkway can quickly lead to a failed audit.

Fines under the OSHA 1994 Amendment effective in June 2024 can now reach up to RM 500,000 for inadequate risk controls. Proper floor markings act as a physical manifestation of your Hazard Identification, Risk Assessment and Risk Control (HIRARC) documentation. Our installations ensure your facility remains fully compliant while keeping daily operations running smoothly.

Let’s look at the primary benefits of an updated visual layout:

• Audit readiness: Clear lines satisfy strict DOSH compliance checks.

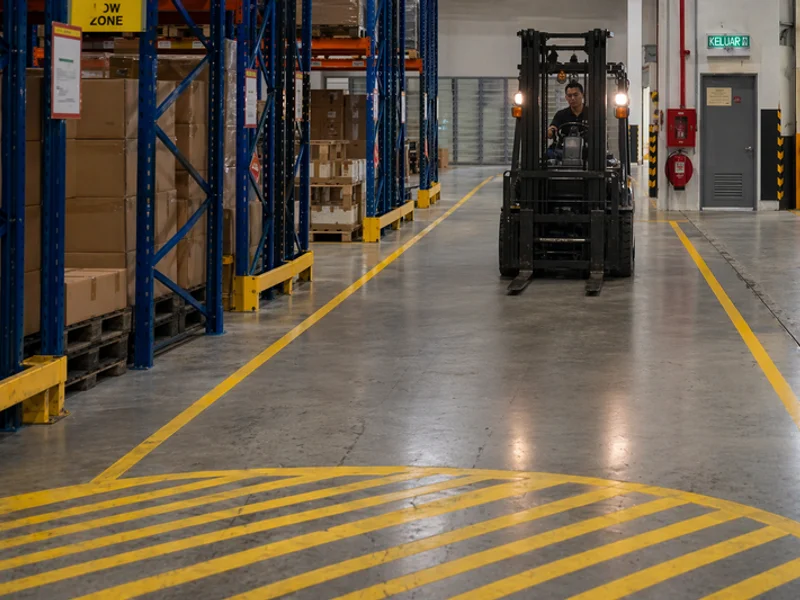

• Accident reduction: Bright pedestrian boundaries keep staff safe from heavy machinery.
• Workflow efficiency: Dedicated storage zones eliminate forklift bottlenecks.
• Material handling safety: High-visibility staging areas prevent load-dropping hazards.

Two systems

Choosing the right material depends entirely on your operational schedule and traffic levels. You want a product that lasts, but you also cannot afford unnecessary downtime. Our team frequently works with top-tier industrial coatings like Nippon Paint EA4 and Jotun Jotafloor to guarantee a hard-wearing finish.

Industrial facilities typically choose between two main application methods. Epoxy provides a permanent chemical bond to the concrete, while thermoplastic offers incredible speed for busy 24/7 logistics hubs. We always recommend evaluating your acceptable downtime before making a final decision.

Here is a quick breakdown to help you compare the two options:

Feature	Epoxy Line Marking	Thermoplastic Hot-Melt
Best Use Case	Permanent factory layouts	High-turnover logistics hubs
Service Life	3 to 5 years (heavy use)	2 to 3 years (heavy use)
Curing Time	6 to 8 hours minimum	Trafficable within 30 minutes
Chemical Resistance	Excellent (oil, coolant, chemicals)	Moderate

Epoxy Line Marking

Permanent epoxy installations offer the highest level of durability for manufacturing environments. High-performance products like the two-pack amine-adduct cured Nippon Paint EA4 provide exceptional resistance against mechanical damage and oil spills. Our application process requires a completely closed floor during installation to ensure perfect adhesion.

You need to plan for a minimum 6 to 8 hour cure time before allowing light foot traffic. Malaysia’s high humidity means a full hard cure for heavy forklift use often requires a 14 to 24 hour recoating and resting window. Our crews carefully monitor environmental conditions to prevent moisture from ruining the finish.

Thermoplastic Hot-Melt Marking

Thermoplastic systems are a lifesaver for facilities that simply cannot spare a full floor closure. This hot-melt application bonds rapidly to the surface and is fully trafficable within 30 minutes. We frequently install this system in busy commercial warehouses where stopping operations is out of the question.

While it has a slightly shorter 2 to 3 year service life, the sheer speed of application makes it incredibly valuable. You will save money on operational downtime, easily offsetting the need for a slightly earlier remarking cycle. Our clients love how quickly their forklifts can get back to work.

Color coding conventions

Using the right safety colors keeps your team protected and satisfies strict regulatory inspectors. We follow the Malaysian Standard MS 2558:2014 conventions by default, ensuring your workplace aligns with national safety guidelines.

This standardization is a critical part of passing a DOSH inspection without receiving an improvement notice. International options are readily available if your corporate parent specifies a different set of visual rules. Our designers can map out any color combination your specific safety policies require.

Here is the standard industrial color palette used across Malaysia:

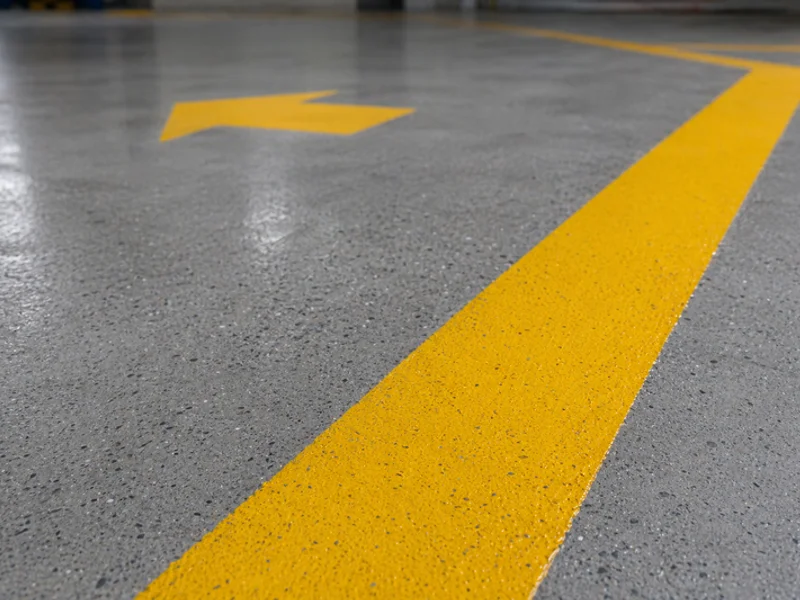

• Yellow: General pedestrian walkways and caution zones.
• White: Product or equipment storage zones and general demarcation.
• Red: Hazard zones, immediate danger areas, and fire extinguishers.

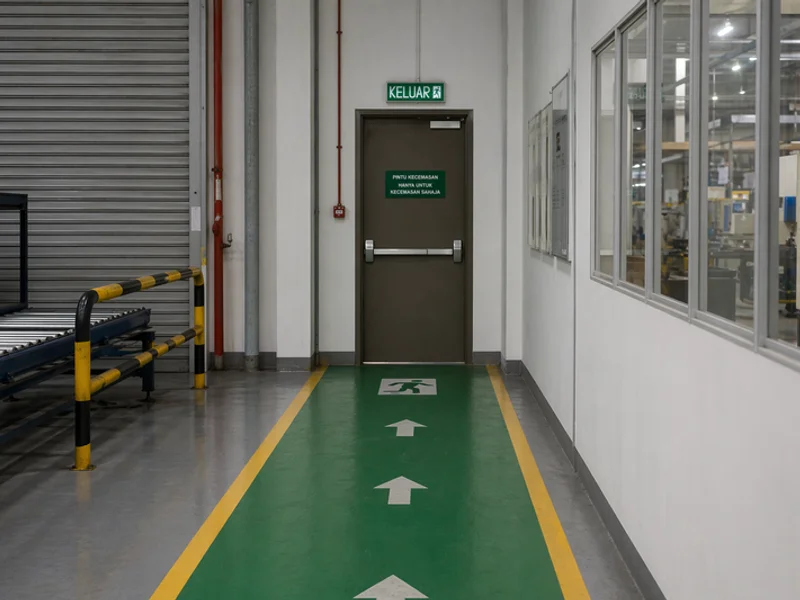

• Green: Fire exit routes, safe walkways, and first aid safety areas.
• Blue: Mandatory action zones and indirect utilities like compressed air or coolant lines.

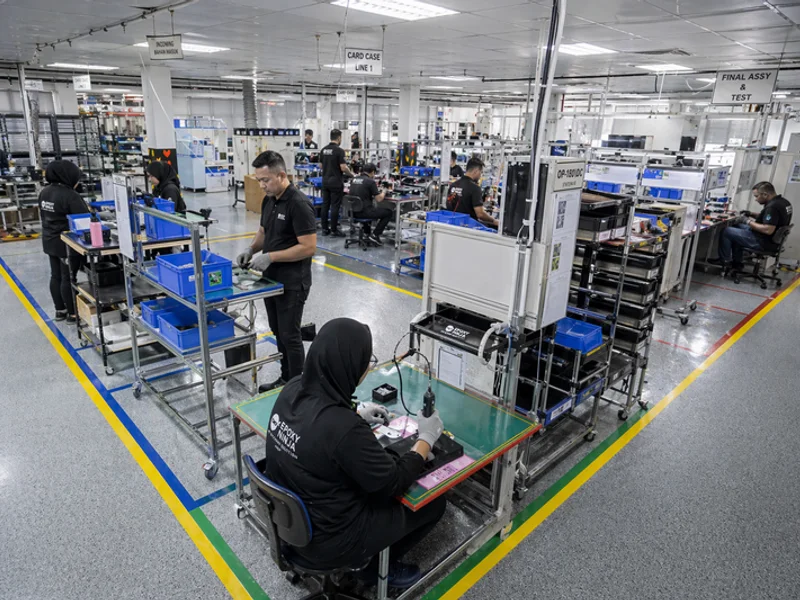

• 5S custom: Specific workstation demarcation in lean production areas.

You should always verify that your facility’s internal safety manual matches these painted colors. A mismatch between your written policy and the actual floor paint is a common mistake that auditors flag immediately. We double-check your existing documentation before we open a single can of paint.

Cost range

Budgeting for a factory floor project is much easier when pricing is transparent and straightforward. The final cost per meter often depends heavily on the amount of surface preparation required. Our crews use specialized diamond grinding tools to prepare the concrete, ensuring the new paint bonds flawlessly.

Skipping proper surface preparation is the biggest mistake you can make, leading directly to peeling paint and wasted money. A clean, properly profiled surface extends the life of your investment significantly. Our standard pricing reflects a complete, professional application from start to finish.

Here is a general breakdown of what you can expect to spend in Ringgit Malaysia:

• Standard epoxy line marking: RM 8 to RM 15 per linear metre for a 100mm wide, single color application.
• Thermoplastic hot-melt marking: RM 12 to RM 20 per linear metre.
• Full 5S grid layout: Quoted per project based on multiple colors and complex geometry.

Comprehensive layout design is automatically included for all full-site installations. Simple re-marks of existing layouts are quoted per linear metre, saving you from unnecessary design fees. We always aim to provide the most cost-effective solution without cutting corners on durability.

Getting started with your Custom Floor Markings & Line Marking

Upgrading your facility’s safety markings is a practical step toward a better, more secure operation. A clearly marked floor keeps everyone safe and helps you pass those tough safety audits with flying colors.

Our team is ready to help you plan the perfect layout for your specific needs.

You do not have to figure out all the compliance rules and material choices alone. A quick conversation can save you a lot of time and prevent costly mistakes down the road.

We invite you to reach out for a custom consultation and a transparent quote today.
