Carpark Line Marking & Traffic Safety Zoning

The short answer

We know that managing a busy factory or food processing facility means constantly juggling safety and logistics.

Investing in a professional carpark line marking malaysia setup does more than just look tidy. It actively separates your heavy delivery trucks from pedestrian zones.

For the specific chemical-resistant systems we apply, see our carpark flooring service. Let us explore the actual standards and how to protect your concrete assets.

What this guide covers

Our team frequently sees facility managers struggle with outdated local guidelines. This guide breaks down the essential carpark bay marking rules for properties in Malaysia. You will find practical data on sizing, paint selection, and new electric vehicle regulations.

Bay layout standards and dimensions

On an install site, this process looks like a repeatable sequence: scan, decide, prep, apply, verify. The order matters far more than most people assume. Skipping a step is never a speed optimisation, because it serves as a failure preset.

Our technicians walk through these specific details on every single site visit. What you decide here drives 60 to 80 percent of your floor’s actual service life.

To make the right call, you must first understand standard sizing and material performance. Most local councils require a standard car bay to measure 2.5 metres by 5.0 metres. Getting this dimension wrong can lead to failed compliance inspections or cramped, dangerous loading zones.

We always evaluate the environment before recommending a paint system. Outdoor factory lots exposed to heavy rain and UV rays require different materials than a climate-controlled indoor food storage basement.

Paint Material Comparison

Choosing the correct parking line paint depends entirely on your operational environment.

Paint Type	Average Lifespan	Ideal Environment	Key Benefit
Thermoplastic	3 to 5 years	Outdoors, exposed roads	High UV resistance and fast 30-minute curing time.
Two-Part Epoxy	6 to 8 years	Indoors, basements, F&B	Exceptional chemical and forklift abrasion resistance.
Solventborne Liquid	1 to 2 years	Temporary zones	Very cost-effective for quick visual updates.

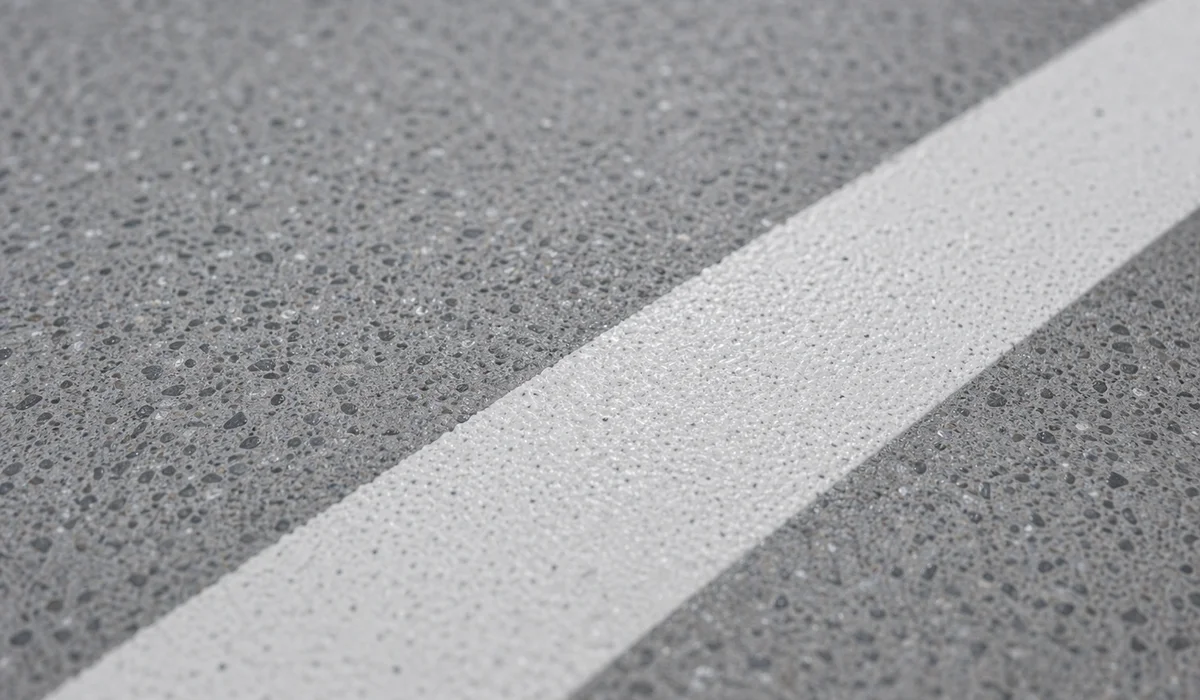

We strongly recommend thermoplastic paint for exterior loading bays because it applies thickly at around 2mm. This thickness provides excellent long-term durability under heavy truck tires.

Indoor pharmaceutical or commercial kitchen parking areas do much better with epoxy, since the controlled temperature allows it to cure properly into a hard, easily cleanable shell.

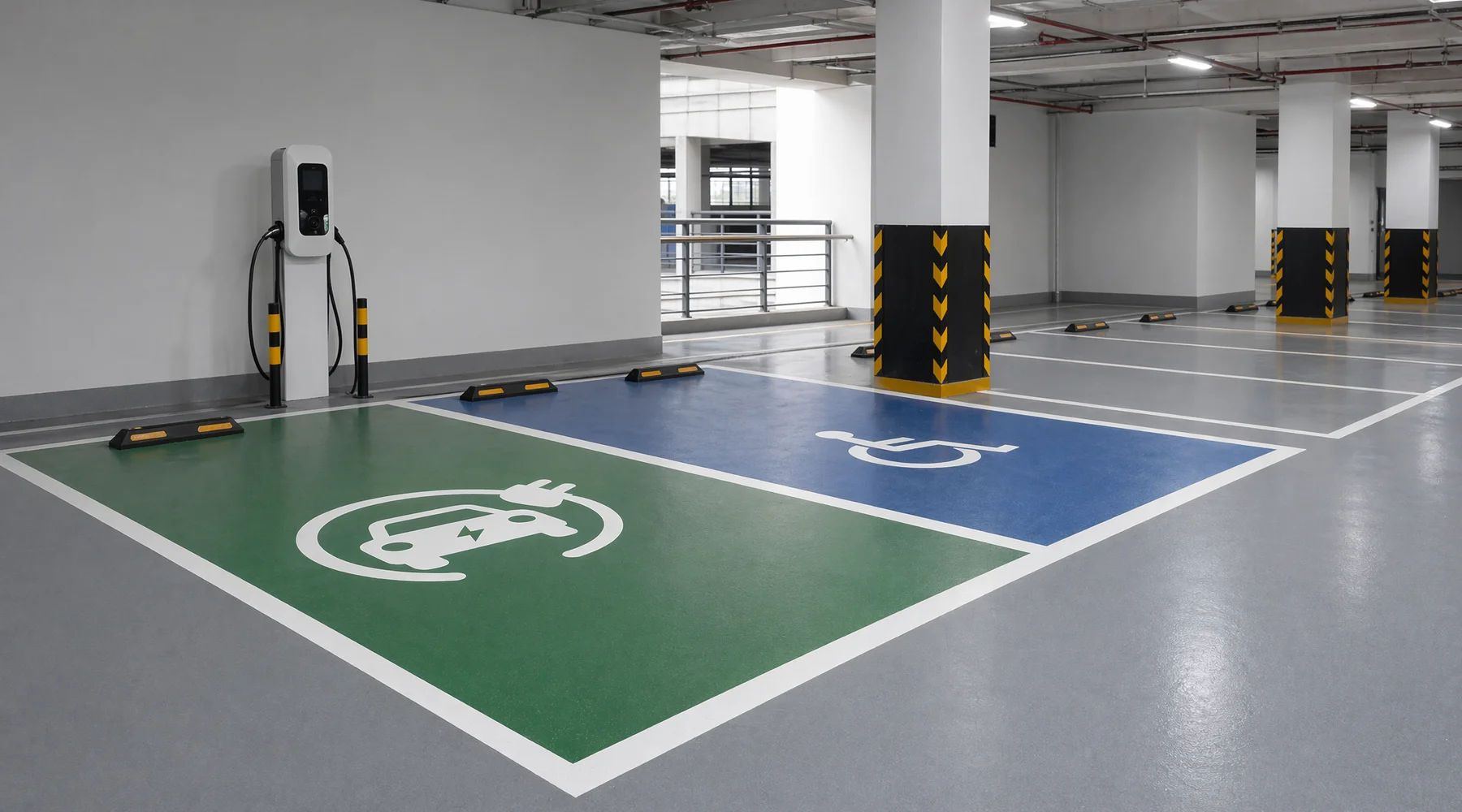

EV, disabled, and priority bay color coding

Our clients often ask how to properly mark specialty zones to avoid compliance penalties. You cannot simply guess the dimensions or paint colours for these high-priority areas. Local regulations strictly dictate how these spaces must be formatted to ensure accessibility and safety.

Disabled (OKU) Bay Regulations

We strictly follow the Malaysian Standard MS 1184:2014 when marking disabled parking areas. The rules require a much larger footprint than a standard spot.

• Minimum Size: The bay must measure at least 3.6 metres wide by 5.4 metres long.
• Transfer Area: This width specifically includes a mandatory 1.2-metre transfer zone beside the vehicle.
• Visual Markers: The space requires a highly visible blue background with a clear wheelchair logo.
• Placement: These bays must sit adjacent to flat walkways or ramps.

Electric Vehicle (EV) Guidelines

The push for green energy has introduced strict new rules for ev bay marking. Based on the 2023 PLANMalaysia Planning Guidelines for Electric Vehicle Charging Bays (EVCB), safety is the primary concern.

• Color Coding: Operators typically paint these bays bright green to clearly designate them and prevent non-EV cars from blocking the chargers.
• Fire Safety Spacing: Direct Current (DC) fast chargers carry a higher fire risk than standard Alternating Current (AC) units.
• Required Equipment: DC charging zones must have specific fire safety components nearby, like vehicle fire blankets or wet risers.

We help facility managers map out these specialty bays so they meet both legal codes and daily operational needs. Getting the EV zoning right the first time prevents expensive rework down the line.

Directional arrows and one-way graphics

Our industrial clients rely on clear traffic flow to prevent expensive accidents. Directional arrows act as the silent traffic controllers of your facility. They guide delivery drivers away from pedestrian walkways and keep forklift operations isolated from standard vehicles.

Failing to clearly mark a one-way system often leads to severe logistical bottlenecks during peak shift changes. We use high-visibility markings to establish strict movement patterns. This simple visual cue drastically reduces the chance of head-on collisions in tight loading bays.

Maximising Graphic Visibility

To get the best results from your directional graphics, you need to consider lighting and wear.

1. Add Reflective Beads: Mixing glass beads into thermoplastic arrows significantly boosts night-time visibility for 24-hour manufacturing plants.
2. Increase Contrast: Use stark white or vibrant yellow paint against dark asphalt to ensure drivers see the instructions immediately.
3. Size Matters: Scale the arrows appropriately for the speed of the area.
4. Strategic Placement: Paint graphics at every major intersection and ramp entrance.

We recommend refreshing these arrows the moment they begin to fade. A faded “Wrong Way” sign is practically useless to a tired driver moving through a busy warehouse lot.

Speed-limit graphics

Our safety audits frequently reveal that drivers ignore wall-mounted speed signs. When driving through a complex factory site, a driver’s eyes naturally drop to the road surface. Painting the speed limit directly onto the driving lane puts the restriction exactly where they are already looking.

Facility safety guidelines typically cap indoor industrial speed limits at 15 km/h to 25 km/h. Keeping speeds low is crucial in areas where employees might step out from between parked delivery vans.

We apply these large numerical graphics using heavy-duty epoxy or thermoplastic, depending on the surface. To make these limits unmissable, facility managers should position them at all main entrance gates and along any long, straight stretches where drivers naturally tend to accelerate. A highly visible speed marker painted in bright yellow serves as an immediate, physical reminder to slow down.

For a closer look at related considerations, read our Carpark Floor Maintenance and Recoating Schedule guide.

What to do next

We know that scheduling a flooring upgrade requires careful planning to minimise downtime.

If you are weighing this decision for your facility, the fastest next step is a free site visit.

Our team will bring a Tramex CMEX5 moisture meter, walk the substrate, document the chemical and thermal exposure, and hand you a written BQ with honest cost paths. There is no obligation for this consultation, and we provide a same-day response across JB, Pasir Gudang, Skudai, Senai, and Iskandar Puteri.

Our Epoxy Carpark Flooring service page covers the system specifications in detail. Contact us today to secure your facility.
